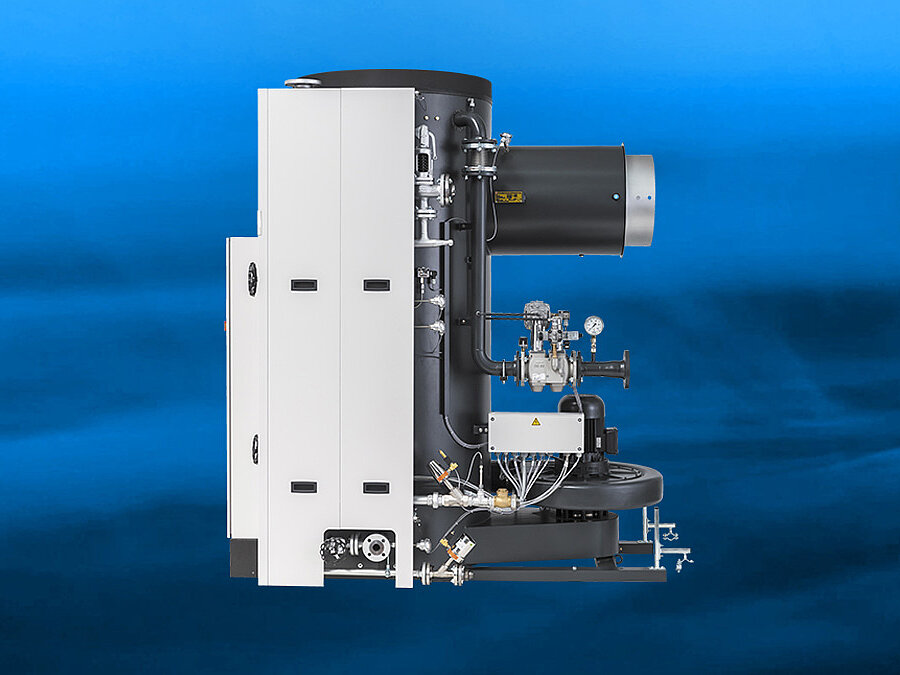

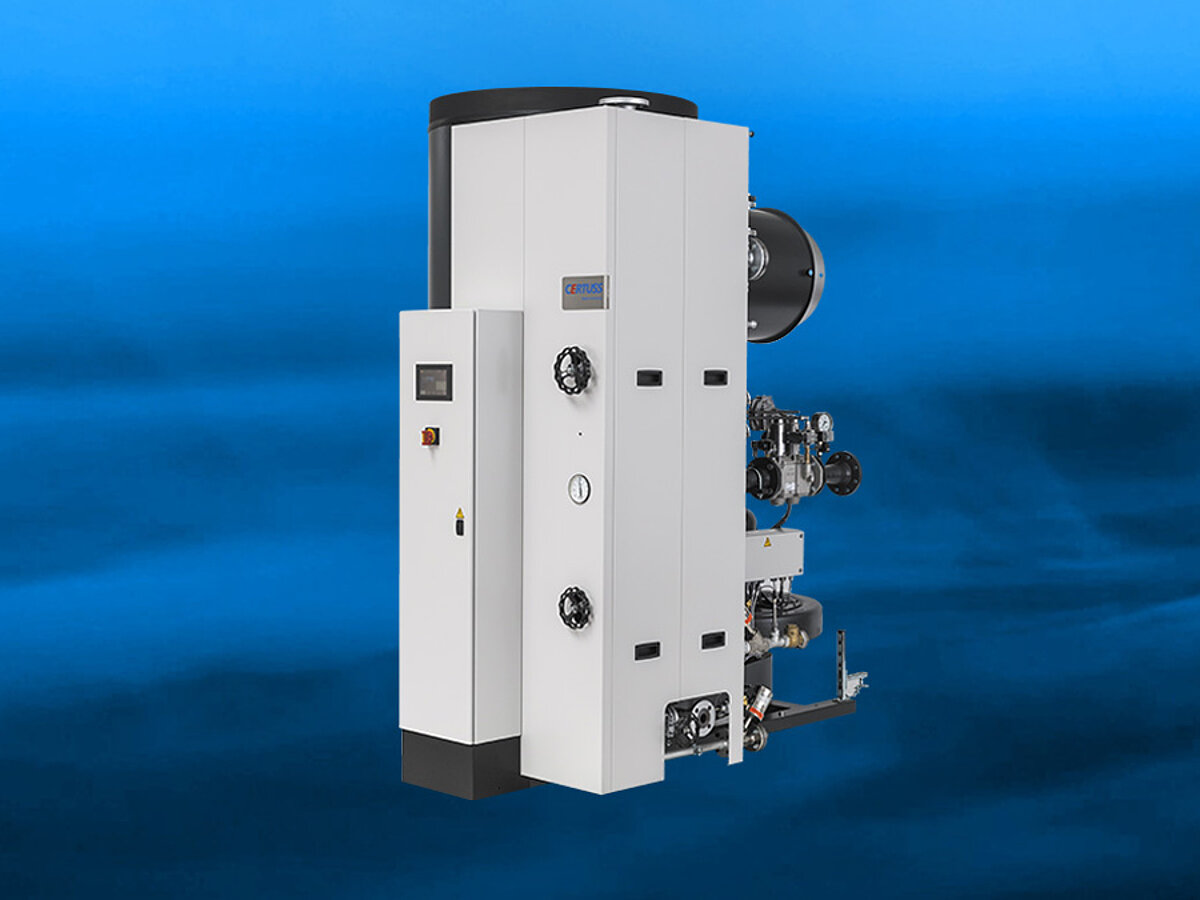

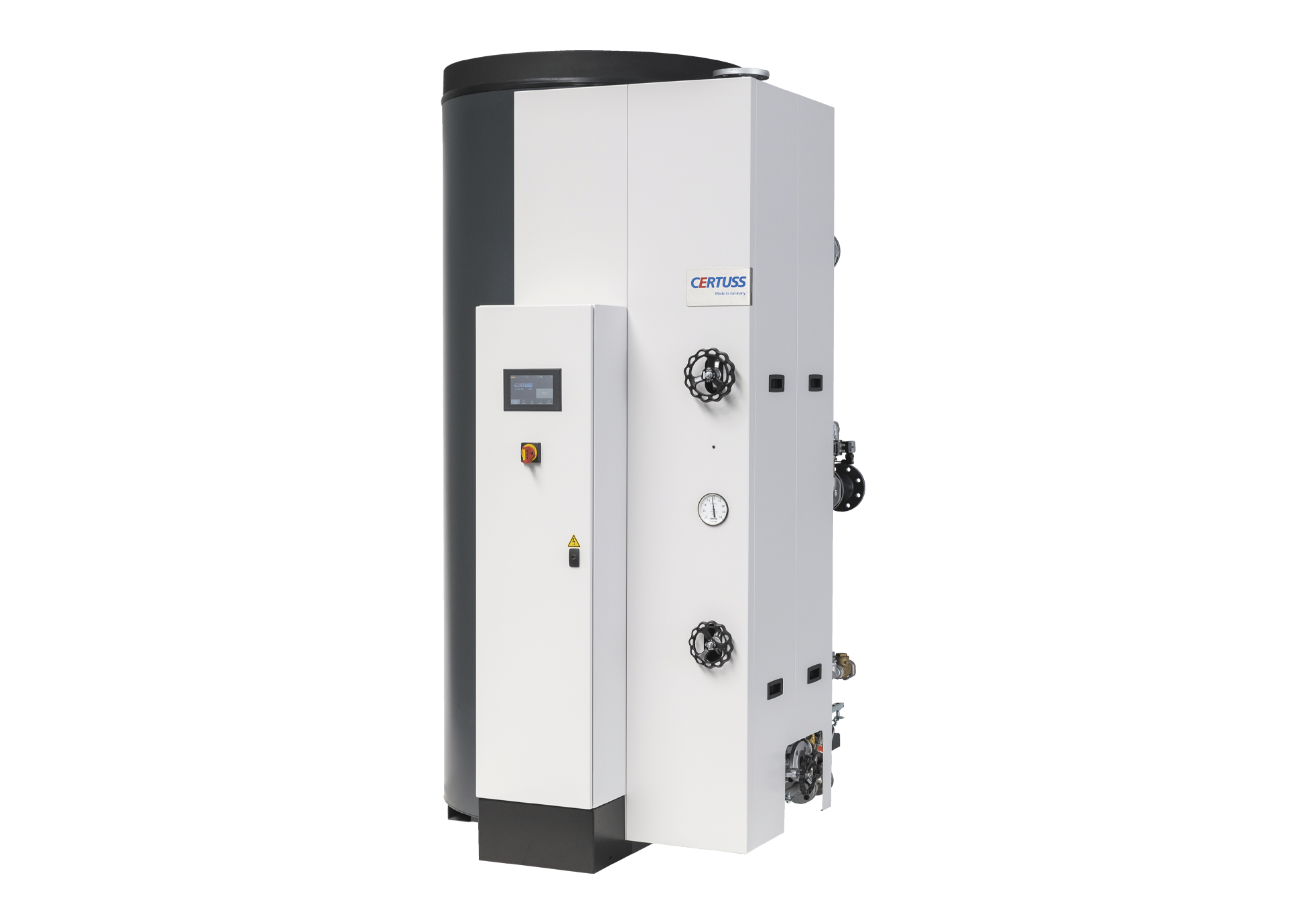

Oil or gas fired Steam boiler

Gas / Oil fired

CERTUSS Universal TC Model Generator offers 5 fuel firing options of Natural Gas fired, Light Oil Fuel fired, LPG fired, Bio-Fuel fired and Dual fuel fired (combi fired).

Steam volumes ranging from 500 kg/h (328 kW) to 2,000 kg/h (1,320 kW) with a total of 10 output capacities are available within 4 construction groups, all offering pressure ranges from 5.5 bar G up to 29 bar G.

The CERTUSS Universal TC Model Generator offers a 2 stage burner operation, with full modulation feature (50 % to 100 %) in second stage burner position. With the CERTUSS Universal TC Model generator steam is produced in under 5 minutes and it can cope with both a constant or fluctuating steam demand. Lightweight in construction, compact in size and suitable for all steam industry sectors, the CERTUSS Universal TC Model generator is suitable for positioning on a mezzanine floor, therefore offering available free floor space below for other usages.

Manufactured with a Touch Screen control facility, data from the CERTUSS Universal TC Model generator can be easily forwarded to site BMS via a compatible Profibus / CAN bus, Modbus, BACnet or similar system. Offering a standard Thermal efficiency of > 93%, the CERTUSS Universal TC Model generator is a world leader in comparison to other industrial steam boilers or industrial steam generators available on the market.

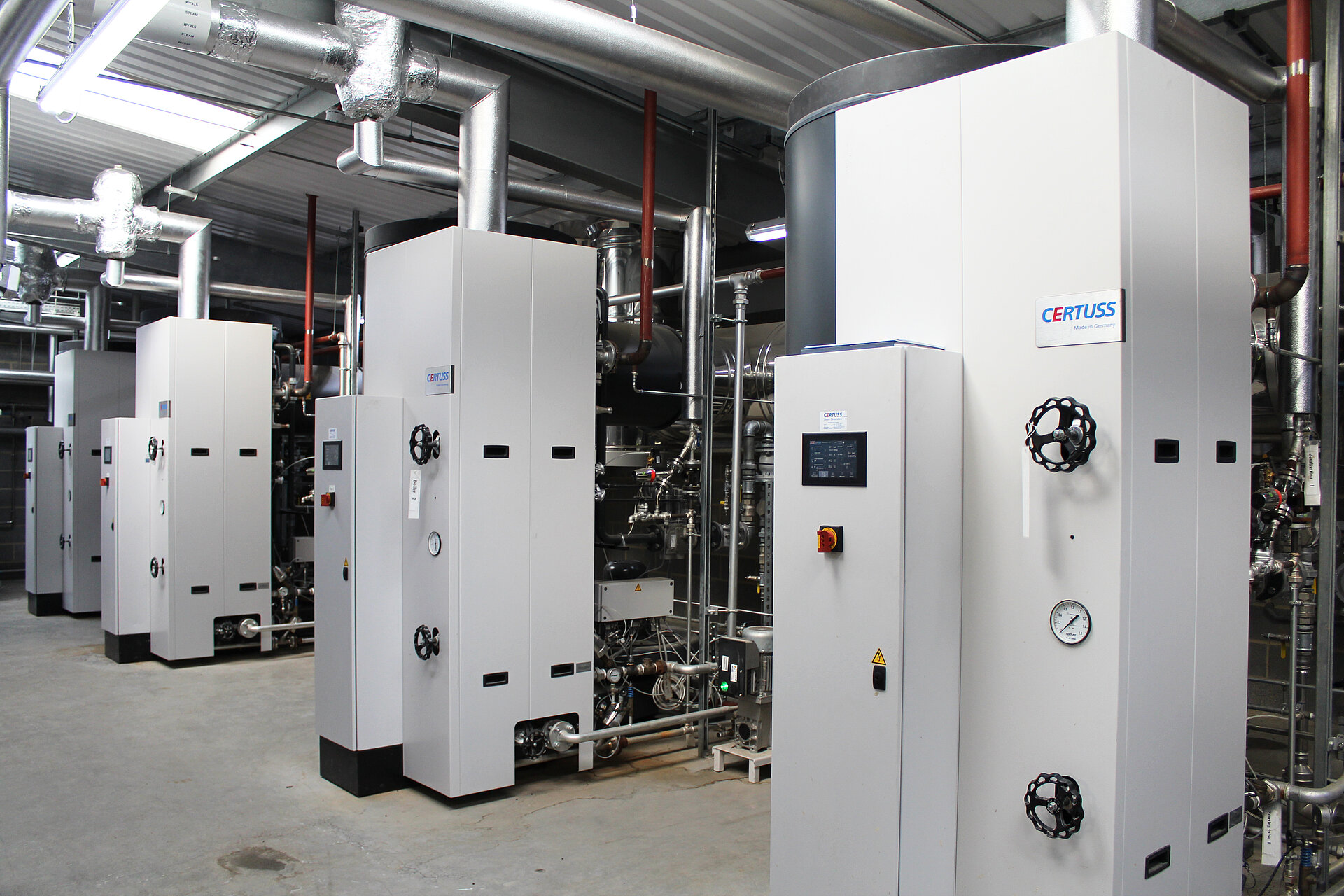

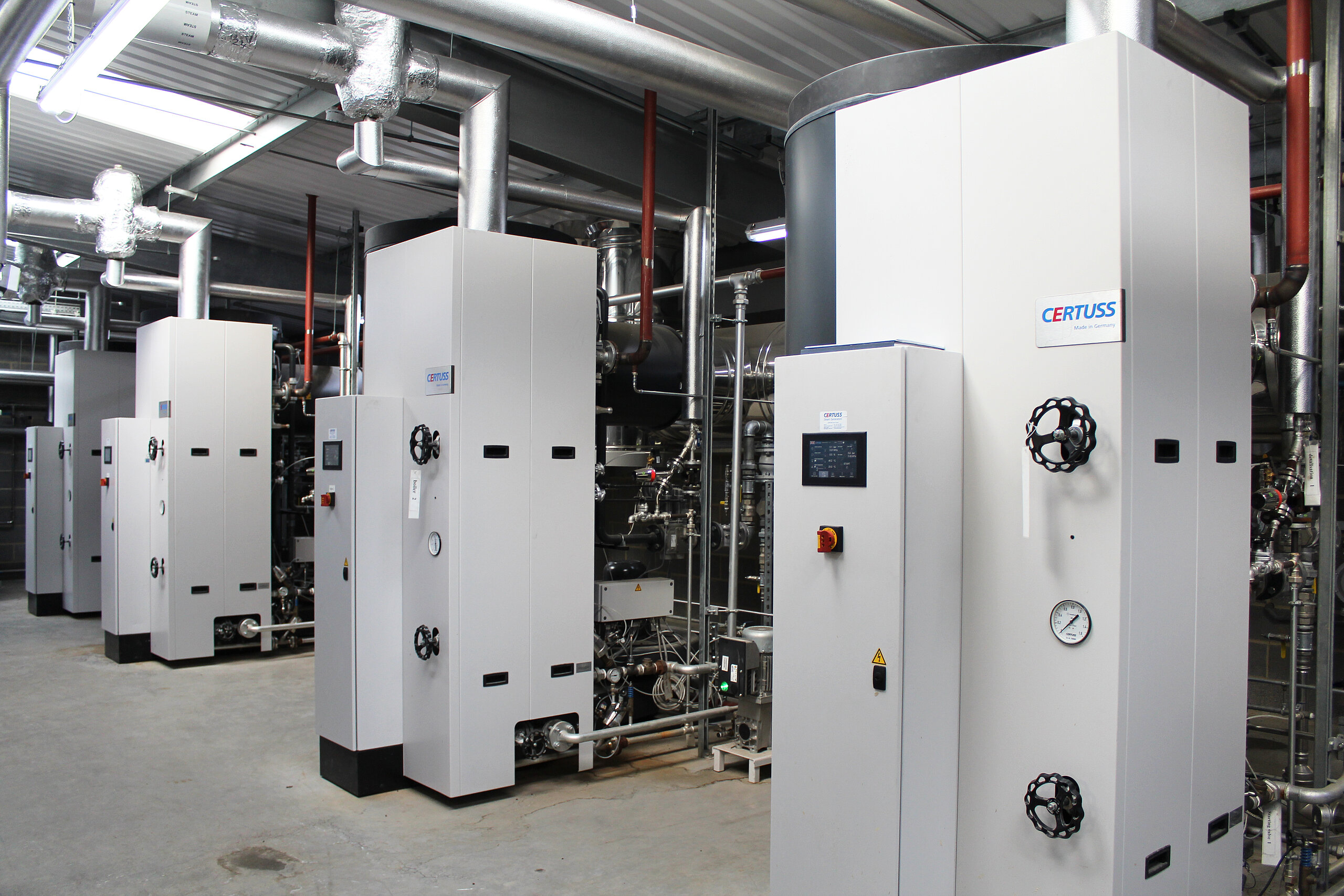

Full automatic stop / start / blow-down facility is available with all CERTUSS Universal TC Model generators. Multiple units are available to meet higher or flexible demand requirements. The CERTUSS Universal TC Model generator can be installed within production facilities. All CERTUSS Steam Generators are manufactured to current PED 2014/68/EU standards.

For less steam output see:

Junior TC steam generators
