Gas / oil fired

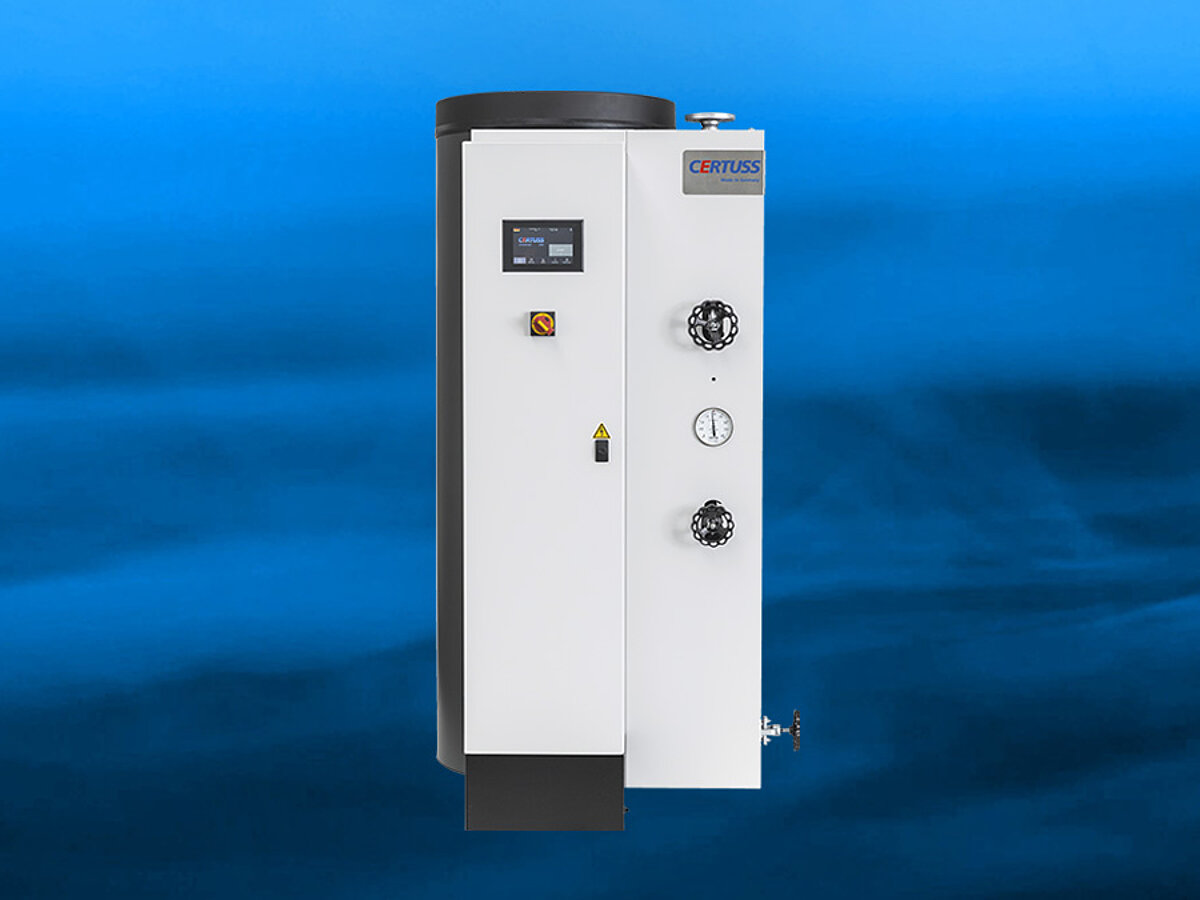

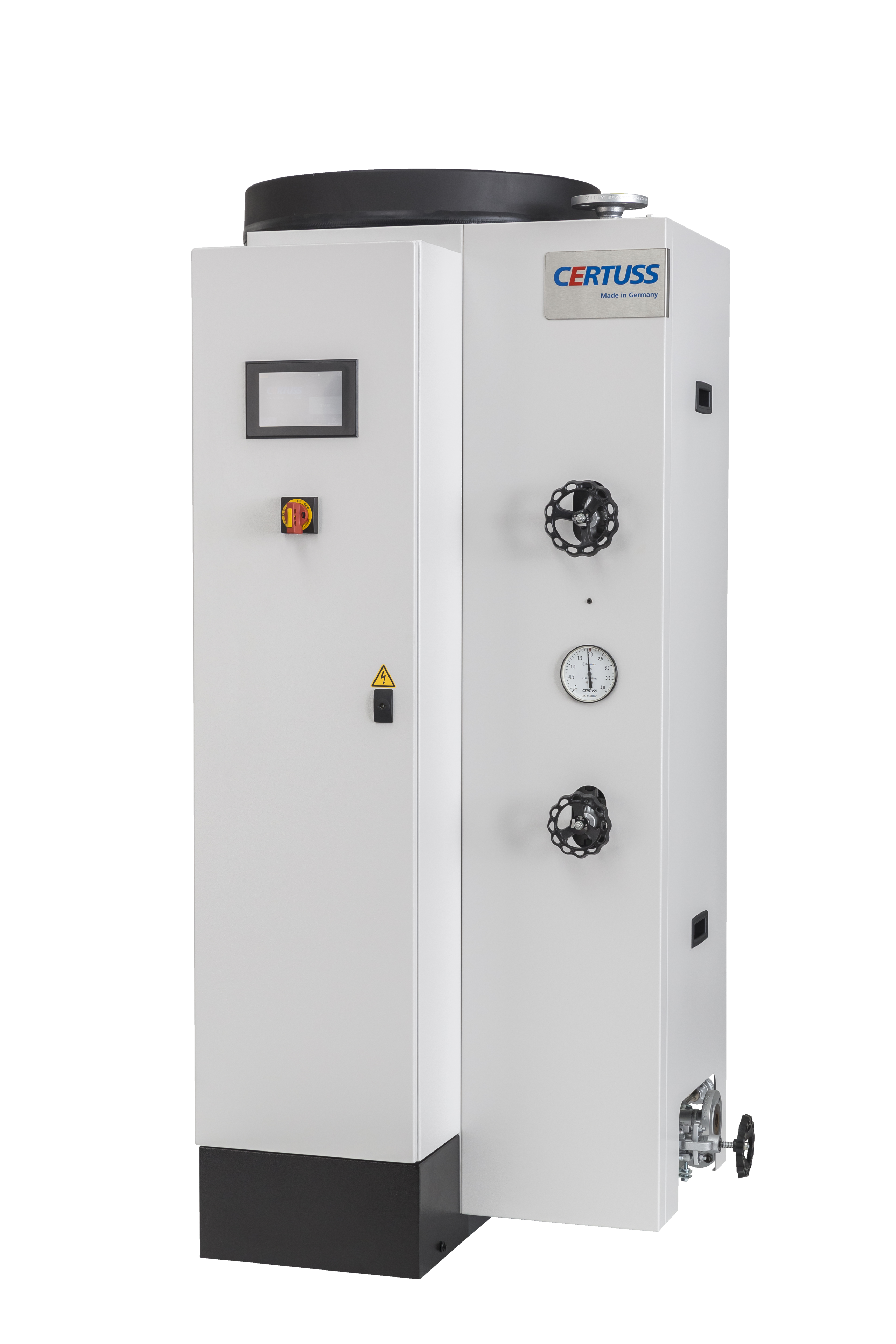

The CERTUSS Junior TC Model is a small steam generator version of the Universal TC Model, offering steam volumes ranging from 80 kg/h (53 kW) to 400 kg/h (262 kW) with a total of 8 output capacities over 3 construction groups.
Operating pressures available are between 5.5 bar G and 29 bar G. The CERTUSS Junior TC Model version offers a variation of gas fired burner options from Natural Gas fired to LPG fired and Light Oil Fired.
The burner facility is single stage. With a standard thermal efficiency of > 93 % the CERTUSS Junior TC Model steam generator offers a more efficient option than comparative small steam boilers available on the market. With no thermal insulation or fire brick used within the manufacturing construction of the CERTUSS Junior TC Model generator, customers are assured of the highest eco-friendly equipment available.
A small compact and lightweight generator offering a high level of efficiency is a perfect fit for any small size steam industry user. The CERTUSS Junior TC Model generator is manufactured with a Touch Screen control facility, where data can be easily forwarded to site BMS via a compatible Profibus / CAN bus, Modbus, BACnet or similar system.
Full automatic stop / start / blow-down facility is available with all CERTUSS Junior TC Model generators. Multiple units are available to meet higher or flexible demand requirements. The CERTUSS Junior TC Model generator can be installed within production facilities. All CERTUSS Steam Generators are manufactured to current PED 2014/68/EU standards.
For more steam output see:
Junior TC — Steam generators for gas / oil
| Size I | Size II | Size III | |
| Steam output | 80 — 120 kg/h | 150 — 200 kg/h | 250 — 400 kg/h |
| Heat output | 52 — 79 kW | 98 — 131 kW | 164 — 262 kW |
| Rated thermal input | 58 — 87 kW | 109 — 145 kW | 182 — 291 kW |
| Height / Width / Depth | 1.515 / 730 / 1.295 mm | 1.600 / 770 / 1.475 mm | 1.850 / 875 / 1.580 mm |
| Min. / max. operating pressure | 6 / 8 — 29 bar | 6 / 8 — 29 bar | 6 / 8 — 29 bar |
| Max. perm. overpressure | 10 — 32 bar | 10 — 32 bar | 10 — 32 bar |
