A new generation of electric steam boilers
- Steam output from 10 to 320 kg/h, continuously adjustable
- Full steam output is ready in 3-5 minutes after system start-up
- Long-life design with high durability
- Fully automatic 72-hour operation
- Remote maintenance, high process reliability
| Model | E10MX — E320MX |
|---|---|
| Steam output | 10 — 320 kg/h |
| Heat output | 8 — 240 kW |
| Electrical connection value | 8,75 — 240,75 kW |
| Height / Width / Depth | 1.900 / 774 / 1.150 mm |
| Min. / Max. operating pressure | 3,0 – 3,5 / 3,0 — 14,5 bar |
| Max. perm. overpressure | 4 / 6 / 10 / 12 / 13 / 16 bar |
EMX display
Lorem ipsum

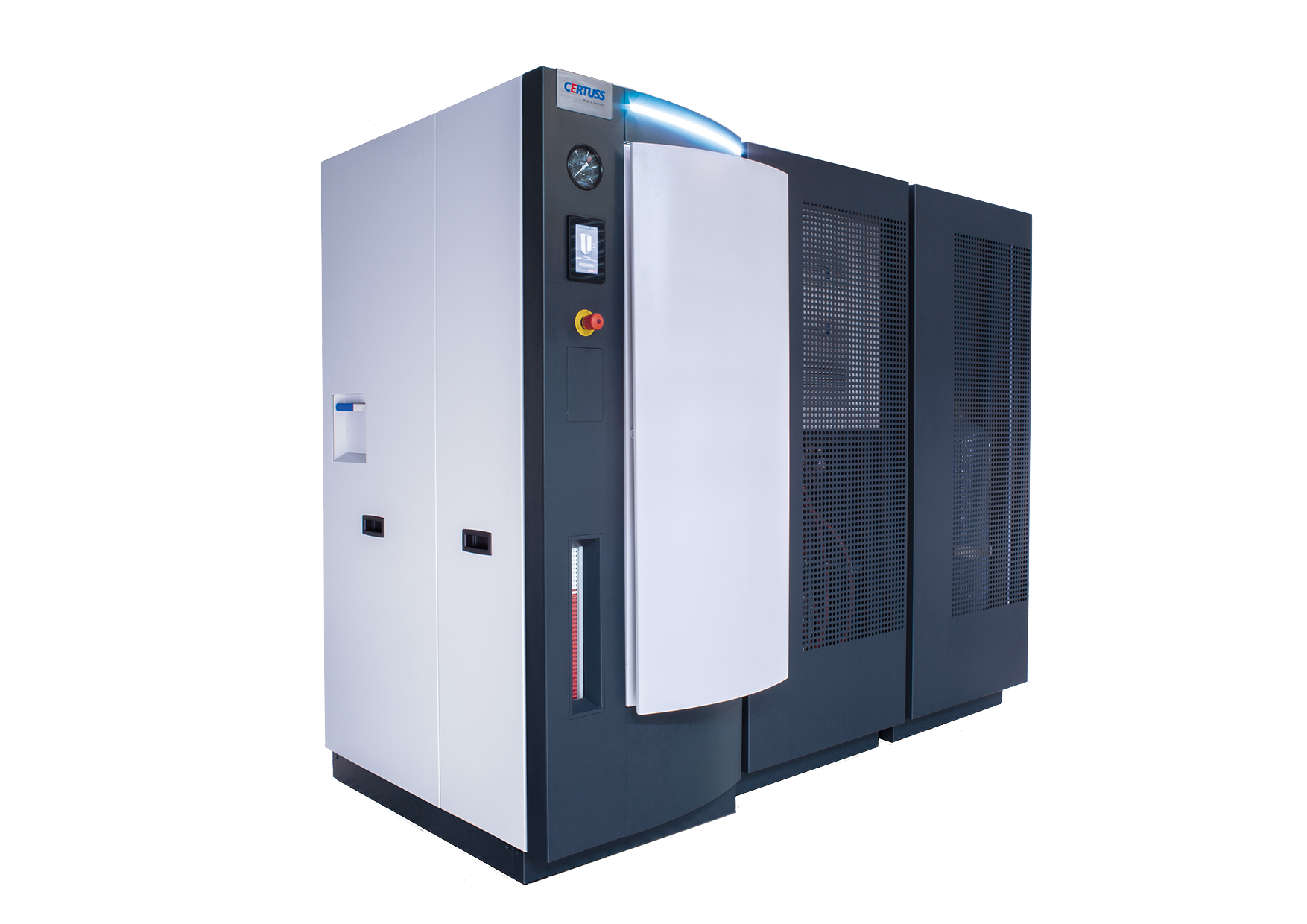

EMX front view
Lorem ipsum

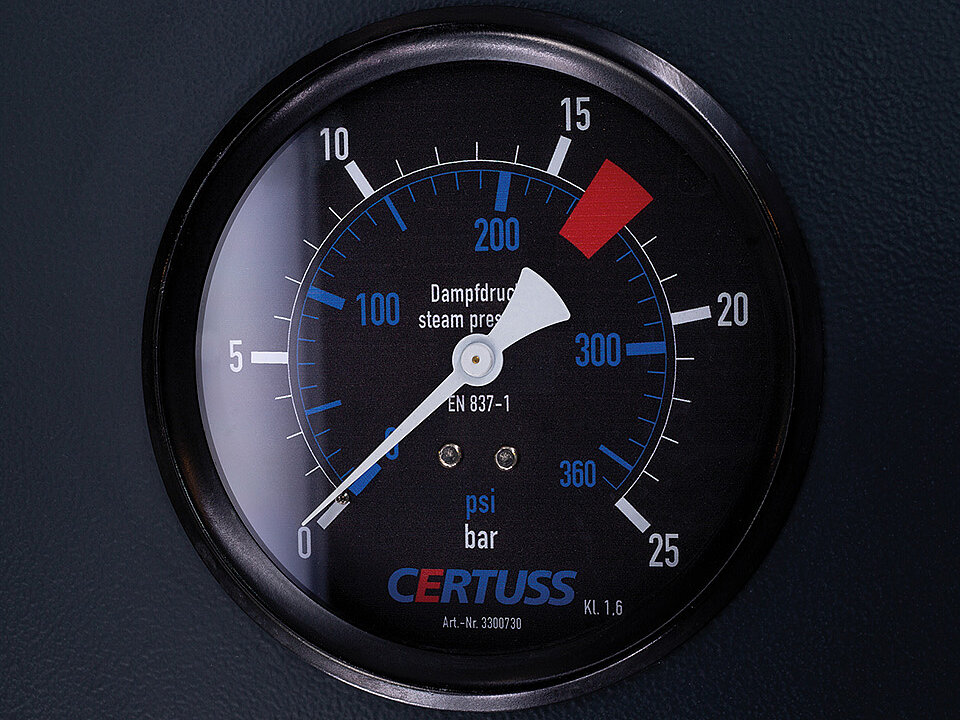

EMX pressure gauge
Lorem ipsum
Advantages
The CERTUSS E10MX – E320MX model range represents a new performance class of electric steam generators.
The full steam output is available within 3-5 minutes after the system is turned on. The output can be regulated continuously from 0 to 320 kg/h. Installation of the safe and space saving steam system can be placed in almost any working environment. The width of the steam generator matches standard door size (less than 80 cm).

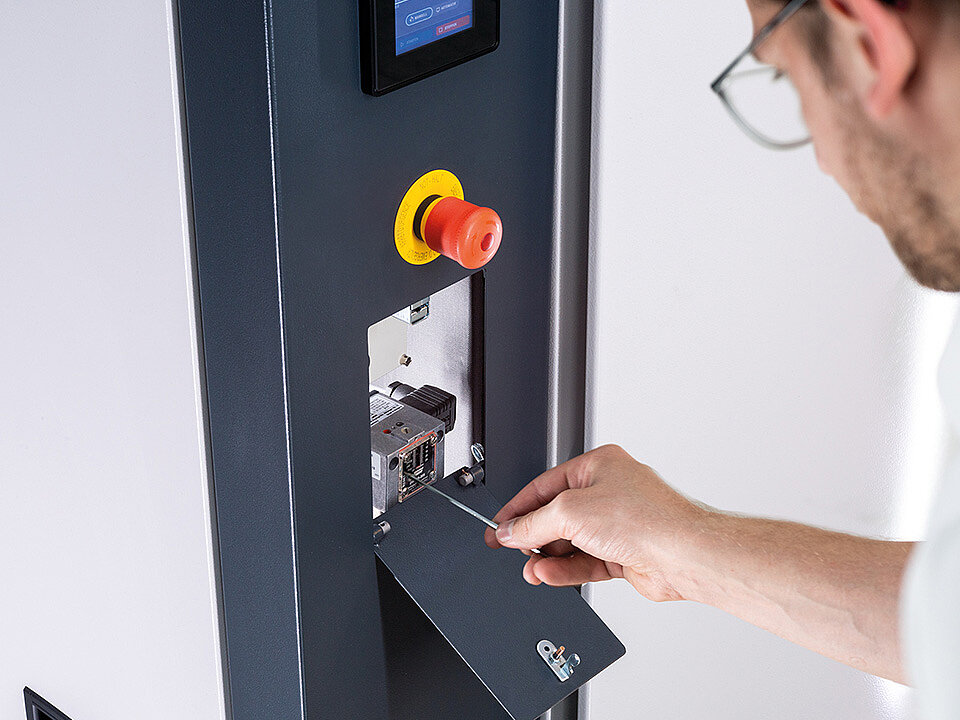

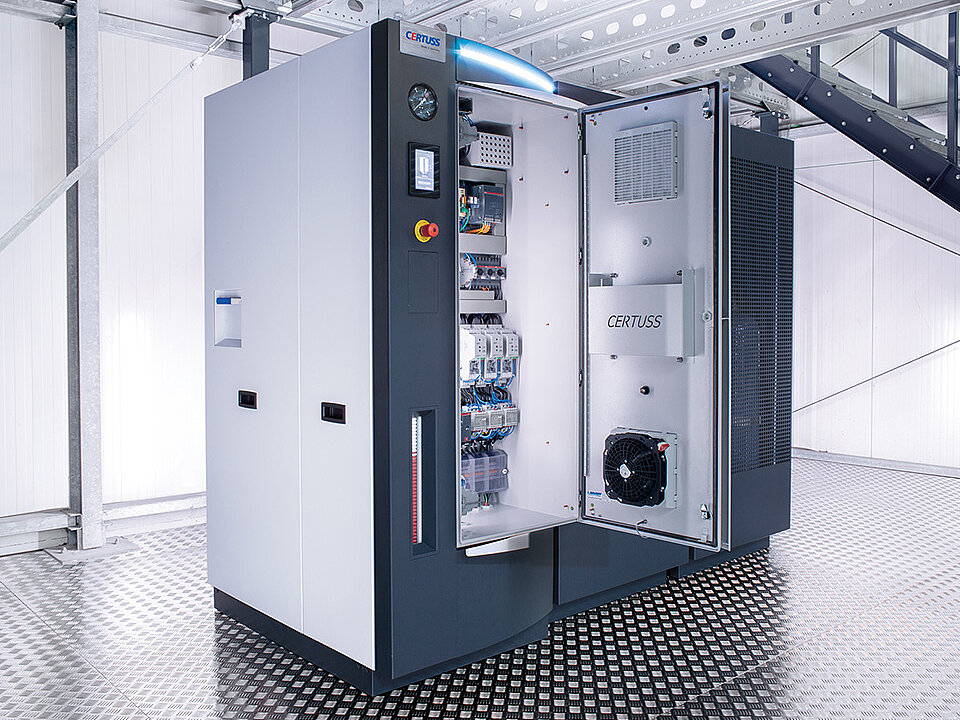

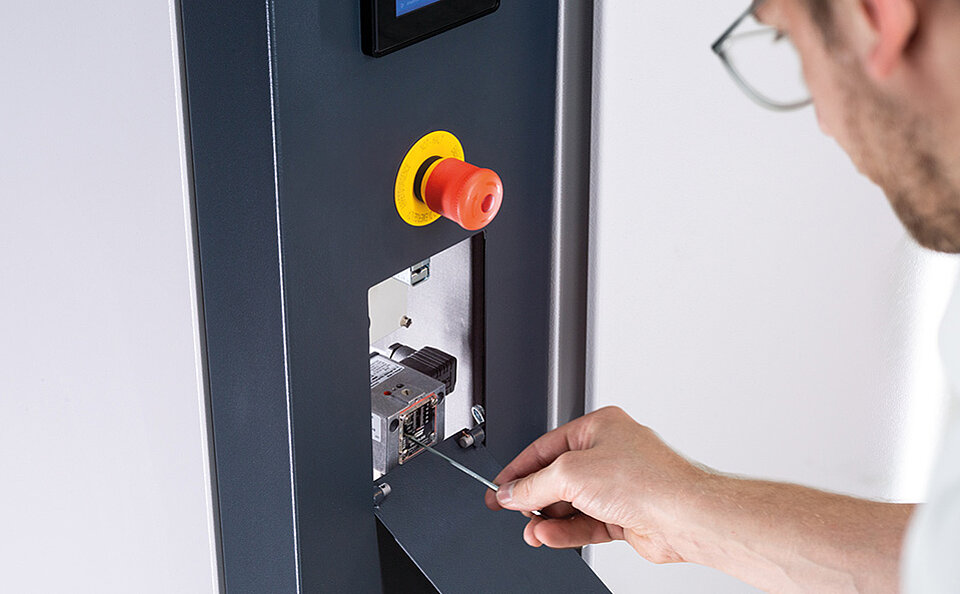

Maintenance of the unit with simple one-view control and remote control. The steam generators are pre-piped and pre-wired, with feed water tanks included in the steam units.
Also available as stainless steel variant. This means that steam can be produced for industrial or culinary needs.
For further electric steam boiler models see:
