Heidelberger Beton GmbH, Munich

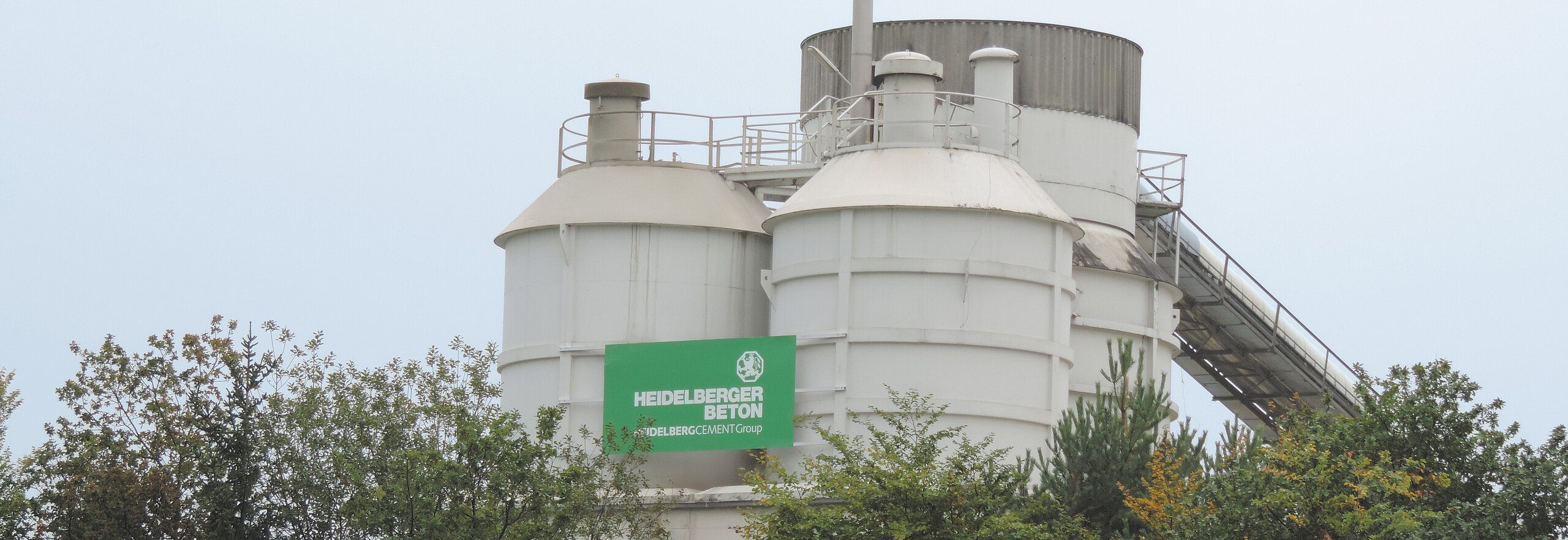

The HeidelbergCement Group has installed steam generators from CERTUSS at several facilities in Germany. This concrete factory in Oberbrunn, Upper Bavaria produces ready-mixed concrete for building, road and bridge construction, as well as special concretes. Steam is required for hot water production and heating of the aggregates of gravel and sand.

The two steam generators from CERTUSS heat a 4,000-liter hot water conditioner and six steam lances. The tanks of the mixing vehicles are filled with hot water if the concrete does not reach 10°C.

Installation and commissioning were carried out by the CERTUSS installation team. This eliminated the need for an expensive German TÜV inspection. The CERTUSS Universal 500 TC falls in category III of the EU Pressure Equipment Directive. No permit is required for installation and use of this size in Germany.

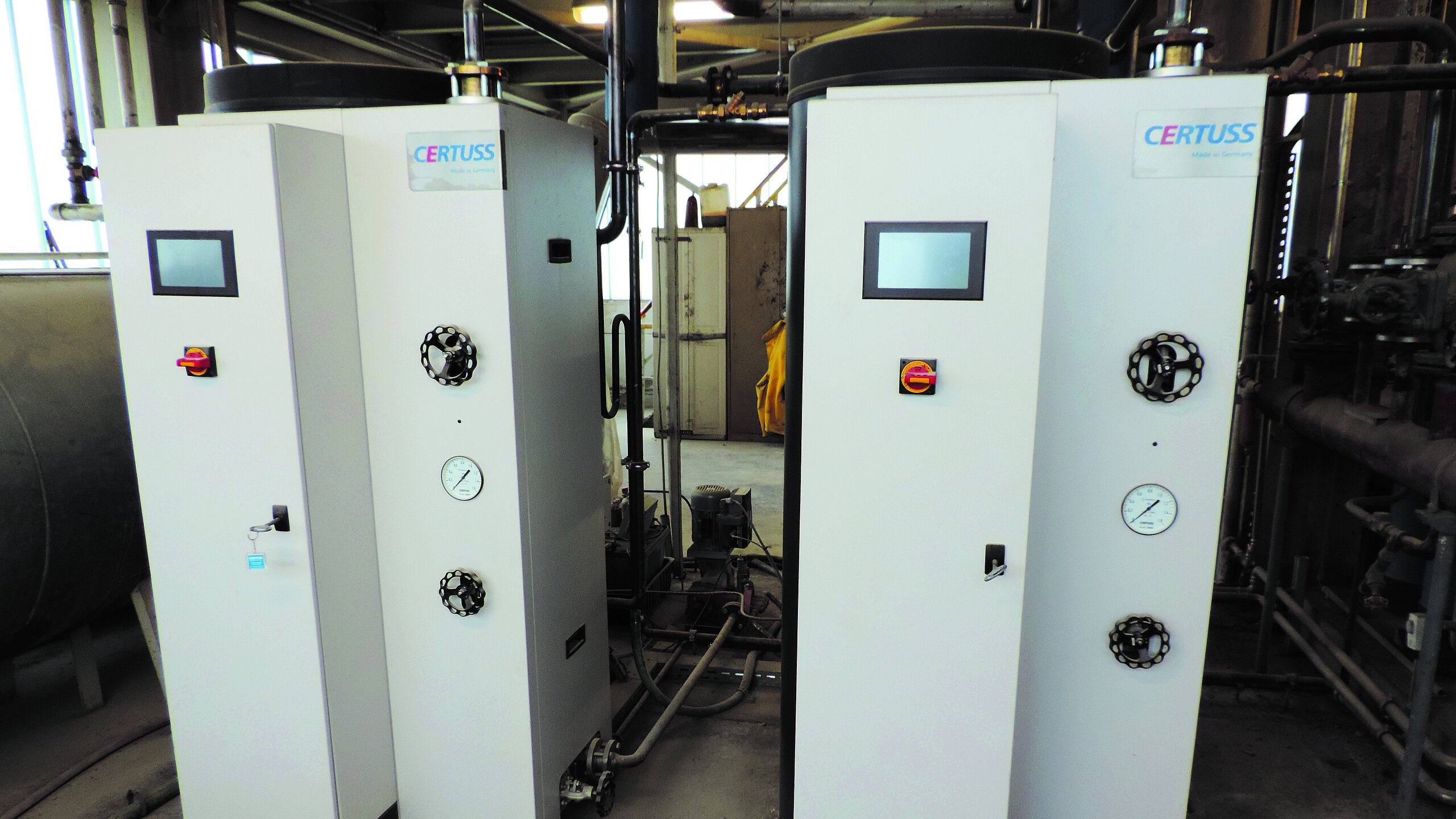

Equipment of the double system

• 2 CERTUSS UNIVERSAL 500 TC steam generators, oil-heated
• Thermotimat automatic system for fully automatic operation

This double system delivers steam output of 1,000 kg/h. A cascade connection results in especially efficient distribution over basic-load and peak-load times.

We chose a double system to cover our base load. During peak-load production of 80 m³ concrete per hour, we switch on the second boiler as well.

The steam system is located directly on the mixer platform at a height of 10 meters. It is subjected to extreme levels of soiling. We chose CERTUSS once again because its systems require little space and are rugged and reliable.

Reiner Schmidt, Technical Head
